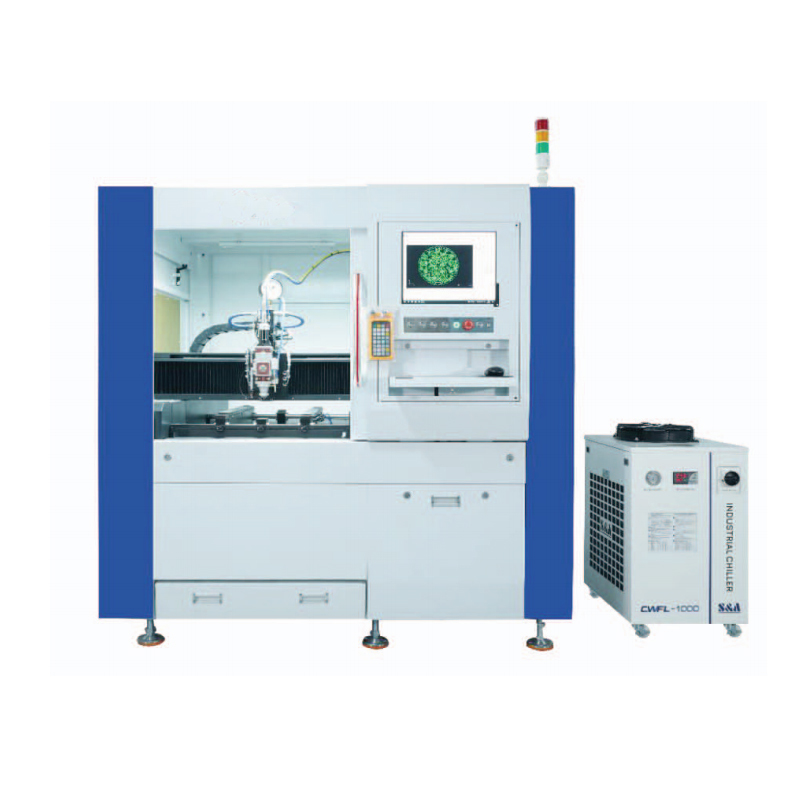

High Precision Laser Cutting Machine Fiber Laser Cutter for Glasses Metal 3C Electronics
Laser precision cutting is based on the combination of laser thermal energy and CNC motion control technology. It irradiates the material surface with a focused laser beam to melt or vaporize the material locally, and uses auxiliary gas to blow away the cut seam, thereby achieving high-precision cutting operations.
Feature:
-
The laser outputs a high-energy laser beam
-
Focused into a very small spot (<20μm) by an optical system
-
The material at the focal point heats up, melts or vaporizes rapidly
-
The motion platform or galvanometer guides the spot to move along the graphic path
-
The auxiliary gas is ejected to take away the slag to form a cutting seam
Specification:
| Laser Wavelength |
1070nm |
| Laser Power |
1000W/1500W/2000W |
| Effective cutting area |
400*600mm/600*600mm |
| Continuous working time |
>24H |
| Cutting thickness |
depend on material |
| Cutting speed |
depend on material |
| Repetitive accuravy |
<±0.01mm |
| Temperature requirements |
15-30℃ |
| Relative Humidity |
<75% |
Fast Questions and Answers.
Q: What can you buy from us?
A: Laser Cleaning Machine, Laser Welding Machine, Laser engraving machine, Laser Cutting Machine, Laser machine accessories like laser head, laser lens etc.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Why choose us?
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
