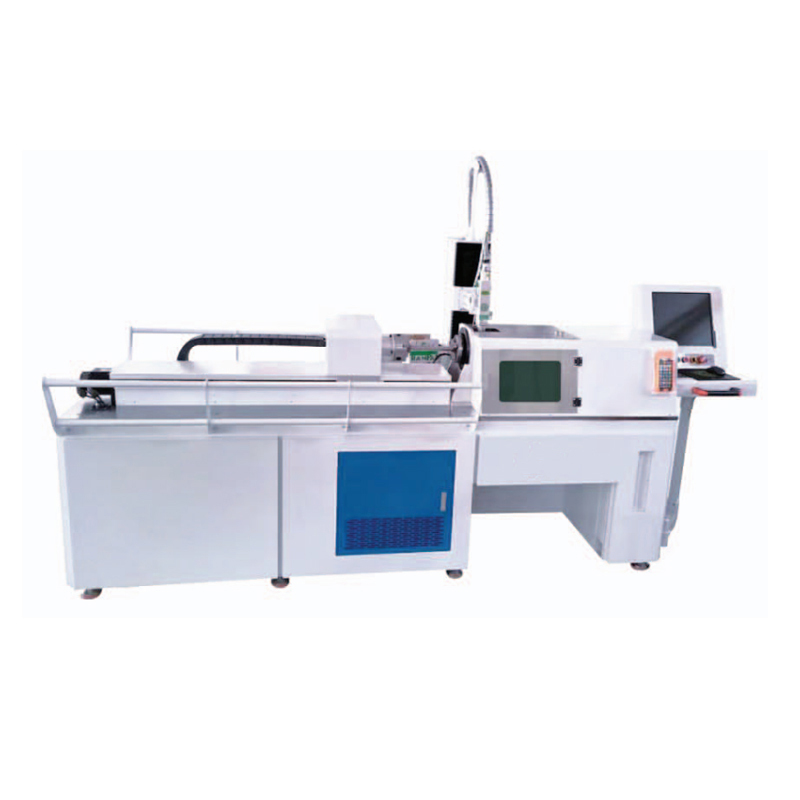

Round Square Pipe Cutting Machine Stainless Steel Pipe Rolling Cutting Machine
Laser tube cutting machine is a high-precision laser device specially designed for cutting metal tubes (round tubes, square tubes, oval tubes, special-shaped tubes, etc.). It uses a high-energy laser beam to perform non-contact, efficient and precise cutting of tubes. It is widely used in furniture manufacturing, automotive parts, fitness equipment, construction machinery, oil pipelines, building structures, aerospace and other industries.
Laser Tube Cutting Machine Structure:
- Fiber laser (IPG, Raycus, MAX, etc.): Mainstream power ranges from 1kW to 6kW, responsible for emitting the laser beam;
- Laser cutting head (autofocus): Focuses the high-energy laser beam to achieve melting and cutting;
- CNC controller: Controls the machining path, rotation angle, cutting speed, and other aspects;
- Tube rotary clamping system (chuck): Secures and rotates the tube for 360° machining;
- Feeding and unloading device: Includes a loading rack, drag table, and automatic length measurement system;
- Cooling system: A water chiller controls laser temperature;
- Dust and fume extraction system: Removes dust generated during machining;
- Machine bed and guide rail system: Ensures cutting accuracy and smooth motion.
Specification:
| working range |
3000mm*1500mm |
| Clamp range |
circular tube:Φ25-Φ220mm
Square tube:口25-口155mm |
| Maximum pipe length |
<6000mm |
| X, Y positioning accuracy |
±0.03mm |
| Repetitive positioning accuracy |
±0.02mm |
| Maximum operating speed |
100m/min |
| Maximum acceleration |
1.0G |
| maximum load |
1.0kg |
Fast Questions and Answers.
Q: How can I get the best machine of laser marking machine for me?
A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not.Then we can give you the best model.
Q: May I add my own logo?
A: Yes, we could help do OEM and can print your logo on machine, please share your logo with us then we can check.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
