Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-CE001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Cutting |
Warranty: |
1 Year |
Laser Source: |
Raycus,JPT,MAX, IPG |
Shipping Port: |
Shenzhen Port |
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Cutting |
Warranty: |
1 Year |
Laser Source: |
Raycus,JPT,MAX, IPG |
Shipping Port: |
Shenzhen Port |

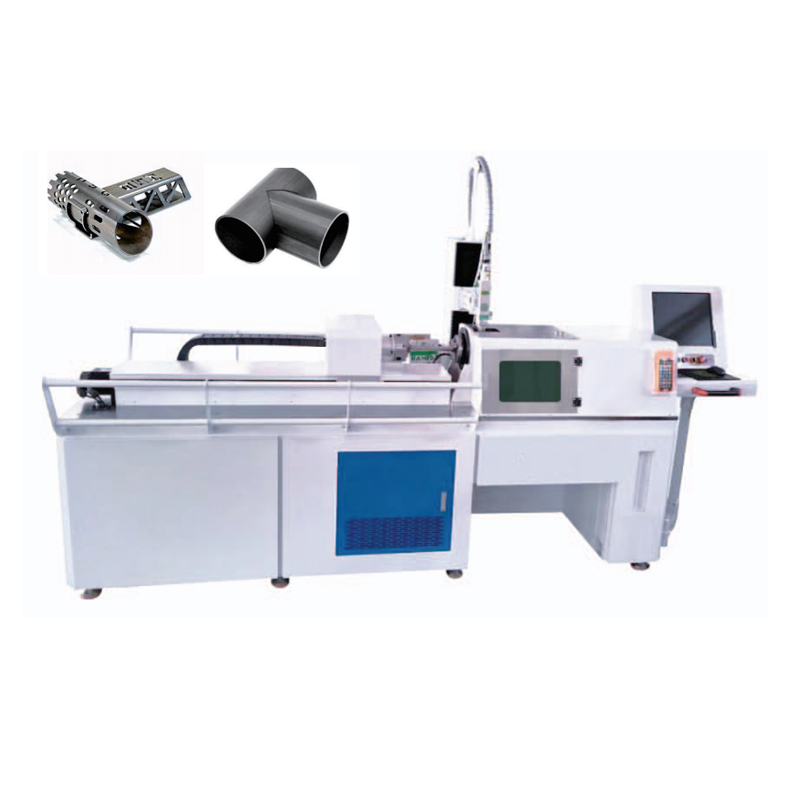

Pipe Tube Fiber Laser Cutting Machine for Metal Tube High Power Pipe Laser Cutting Machine
A laser tube cutting machine combines laser technology with a CNC system to perform high-speed, high-precision, multi-angle cutting, drilling, grooving, beveling, and other complex processing operations on various metal tubes. It automatically completes a series of operations, including loading, rotation, positioning, and cutting, offering an upgraded alternative to traditional sawing, punching, and milling processes.
What's The Advantages Of Our Machine?
Specification:
| working range | 3000mm*1500mm |
| Clamp range | circular tube:Φ25-Φ220mm Square tube:口25-口155mm |
| Maximum pipe length | <6000mm |
| X, Y positioning accuracy | ±0.03mm |
| Repetitive positioning accuracy | ±0.02mm |
| Maximum operating speed | 100m/min |
| Maximum acceleration | 1.0G |
| maximum load | 1.0kg |
Why Choose us?
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
