Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-CC001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Cutting |
Warranty: |
1 Year |
Laser Power: |
Continuous: 1000-6000W Pulse: 100/1000-400/4500W |
Laser Wavelength: |
1070nm |
Laser Source: |
Raycus,JPT,MAX, IPG |
Shipping Port: |
Shenzhen Port |
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Cutting |
Warranty: |
1 Year |
Laser Power: |
Continuous: 1000-6000W Pulse: 100/1000-400/4500W |
Laser Wavelength: |
1070nm |
Laser Source: |
Raycus,JPT,MAX, IPG |
Shipping Port: |
Shenzhen Port |

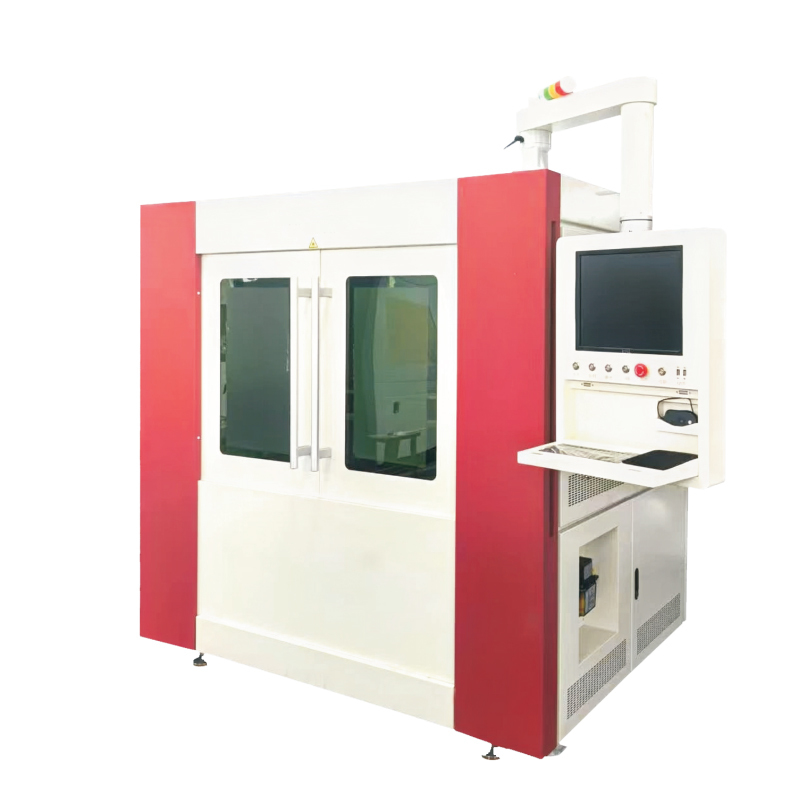

Full Cover Fiber Cutting Laser Machine Metal and Non-metal Cutting with Marble Platform
The fully shielded precision laser cutting machine is a high-precision, high-safety laser processing device widely used in precision manufacturing fields such as electronics, medical equipment, aerospace, watches, and precision hardware. It combines the high efficiency and high precision of laser cutting with fully enclosed protective measures in its structural design to ensure operator safety and a clean environment.
What's The Advantages Of Our Machine?
Fully Protective Structure
The fully enclosed design effectively blocks laser radiation, protecting the operator's eyes and body.
Equipped with an observation window and laser-protective glass for real-time monitoring.
An internal negative pressure exhaust system and dust filter purify the processing environment.
High-Precision Cutting
Precision guide rails and high-precision servo motor drive.
Supports micron-level positioning accuracy (±0.01 mm or higher).
Especially suitable for thin metals (such as stainless steel, aluminum alloy, and titanium alloy), metal foils, and rigid plastics.
Excellent Laser Performance
Mostly uses fiber lasers (such as IPG, Raycus, and MAX).
The wavelength is typically 1064 nm (infrared), with fine focus, suitable for precision cutting.
Power ranges from 100W to 2000W (selectable depending on the specific application).
Specification:
| Laser Type | Fiber(Continuous/Pulse) |
| Laser Wavelength | 1070±5nm |
| Laser Power | Continuous: 1000-6000W Pulse: 100/1000-400/4500W |
| Effective cutting area | 600*600mm/600*900mm |
| positioning accuracy | ±0.01mm |
| Repetitive positioning accuracy | ±0.01mm |
| Minimum cutting seam | 0.1mm |
| Driving mode | linear motor/lapping |
| Maximum cutting speed | 30m/min |
| Maximum acceleration | 1.2G |
| Cooling Mode | Water cooling/air cooling |
| Continuous working time | >24H |
