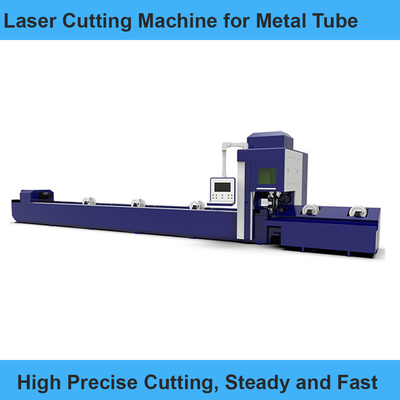

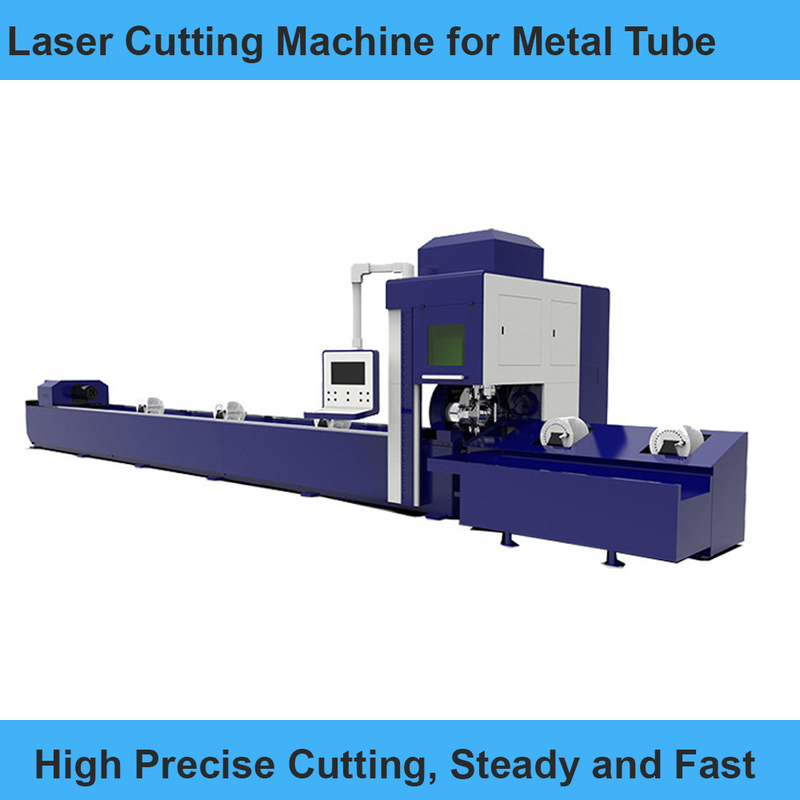

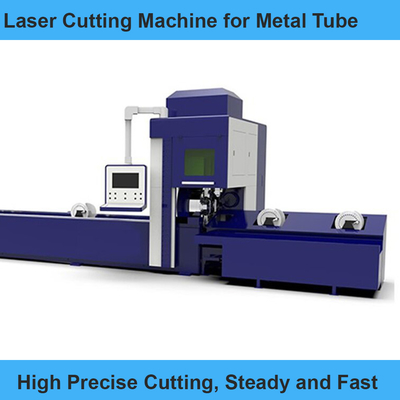

High precision automatic laser cutter pipe cut metal tube cutting machine
Advantages of our machine:
1. Different laser power for your different needs, high cutting speed up to 160r/min, with short tailings—40~160mm.
2. Precise position repetition within ±0.03mm, suitable for all kinds of tubes, like circular tube, square tube, oval tube or other irregular tubes.
3. The machine base is heavy and steady, with every machine body anneal, stable and without deformation.
Specification:
| Items |
Technical Parameters |
| Model |
LCM - PP6000/8000/12000 - 3000 |
Custom
Custom |
| Cuttable tube length |
6m/8m/12m |
| Diameter range of processing circular pipes |
10 - 220mm |
20 - 460mm |
| Processing square tube edge length range |
1010 - 155155mm |
2020 - 320320mm |
| Output power |
2000W/3000W/4000W/6000W |
|
| Repetitive positioning accuracy |
±0.03mm |
|
| Chuck speed |
160r/min |
|
| Maximum acceleration |
1.2G |
|
| Cutting width |
0.1 - 0.2mm |
|
| Automatic feeding system |
Optional |
|
| Applicable materials |
Carbon steel, stainless steel, aluminum, brass, copper, galvanized steel, alloys, etc. |
|
| Applicable pipe type |
Round tube, square tube, rectangular tube, elliptical tube, irregular tube, channel steel, I - shaped steel, T-shaped steel, etc. |
|
Welcome your inquiry!
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
Questions and Fast Answers.
Q: What can you buy from us?
A: Laser Cleaning Machine, Laser Welding Machine, Laser engraving machine, Laser Cutting Machine, Laser machine accessories like laser head, laser lens etc.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Q: Can we sell your machine in our country as local agent?
A: Yes, we welcome you to become our local agent, and we will support our agent with training, installation, after-sales service to make sure the business well.
