Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-WD001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Power: |
Continuous: 1000-6000W Pulse: 100/1000-400/4500W |
Laser Modes: |
Continuous/Pulse |
Laser Type: |
Fiber(Continuous/Pulse) |
Platform Motion Range: |
500*300/800*400mm |
Laser Indicator: |
Red Light+HD CCD |
Cooling Mode: |
Air Cooling Or Water Cooling |
Power: |
Continuous: 1000-6000W Pulse: 100/1000-400/4500W |
Laser Modes: |
Continuous/Pulse |
Laser Type: |
Fiber(Continuous/Pulse) |
Platform Motion Range: |
500*300/800*400mm |
Laser Indicator: |
Red Light+HD CCD |
Cooling Mode: |
Air Cooling Or Water Cooling |
High Quality Laser Welding Machine Fiber Optic Laser Mirror Welding Machine Portable Laser Welder

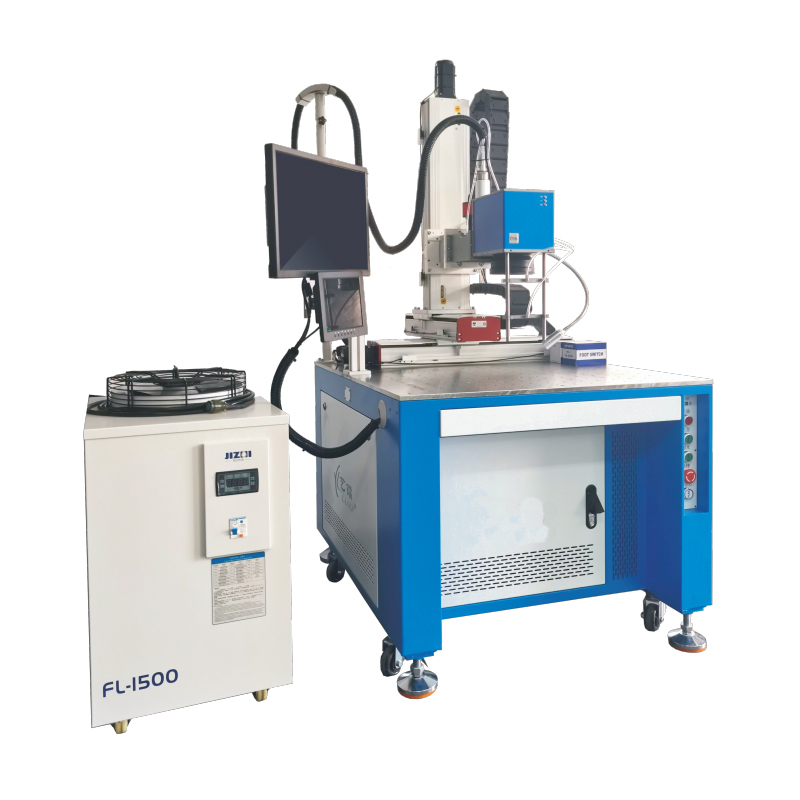

The fiber laser galvanometer welding machine is a precision laser welding device that combines a fiber laser with a high-speed scanning galvanometer system. It relies on the laser galvanometer (Galvo Scanner) to quickly deflect the laser beam to achieve high-precision and high-efficiency spot welding or seam welding. It is especially suitable for small parts, precision electronics, power batteries, inductor and capacitor packaging and other application scenarios that require fast welding speed and high precision.
What's The Advantages Of Our Machine?
High-speed welding: up to hundreds of millimeters per second, suitable for large-scale spot welding and seam welding.
Non-contact processing: no need to move the workpiece or welding head, reducing mechanical wear and error.
High precision: positioning accuracy can reach ±0.02mm, suitable for precision structural parts.
Flexible graphic control: customizable graphic path, support BMP/DXF import.
Small heat-affected zone: fine laser beam focus, suitable for heat-sensitive materials.
Good repeatability: CNC programming welding path, each weld point is highly consistent.
Specification:
| Laser Type | Fiber(Continuous/Pulse) |
| Laser Wavelength | 1070nm±5nm |
| Laser Power | Continuous: 1000-6000W Pulse: 100/1000-400/4500W |
| optical fiber core radius | 14/20/50/100μm |
| Wedding Range | 100*100mm/150*50mm/200*200mm |
| Platform motion range | 500*300/800*400mm |
| RMS Repetitive accuravy | <2urad |
| Platform motion Repetitive accuravy | ±0.02mm |
| Laser Modes | Continuous/Pulse |
| Laser Indicator | Red light+HD CCD |
| Cooling Mode | air cooling/water cooling |
Why Choose us?
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
Fiber Laser Galvo Welding Machine
