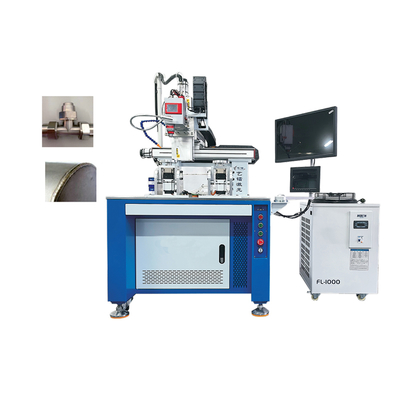

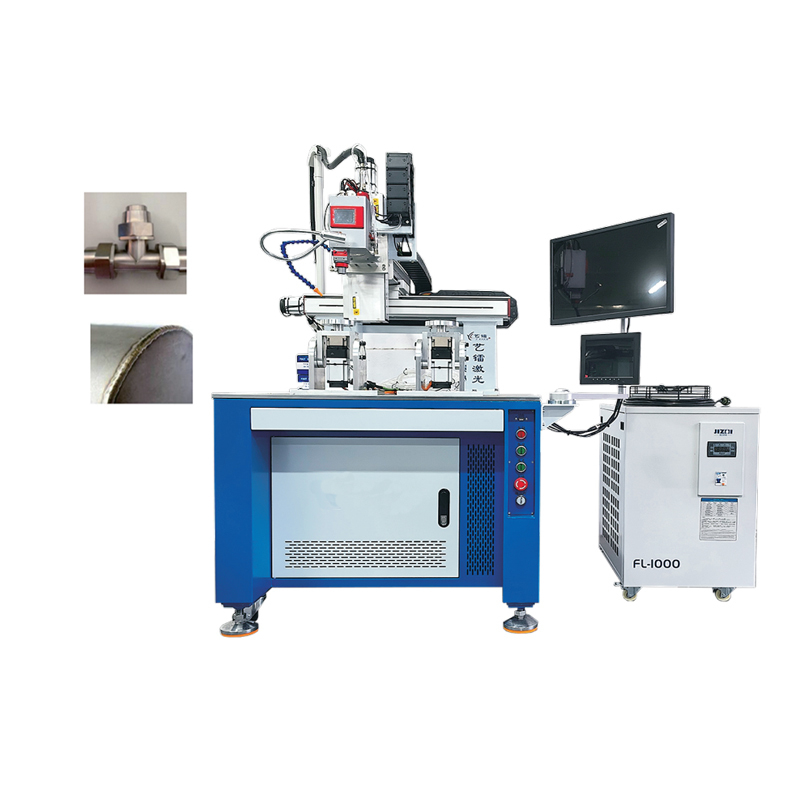

Automatic Visual Positioning Gantry Laser Welder Laser Welding Machine
The laser gantry welding machine is based on the gantry frame structure. The laser and welding head are installed on the beam moving platform. Through the linkage of X, Y, and Z axes (or more axes), the automatic welding of large-format metal workpieces is realized. Its outstanding features are: suitable for large workpieces, high-stability welding, and high-precision trajectory control.
Feature:
- Strong continuous welding capability: supports continuous deep welding of long welds, suitable for structural strength welds.
- High degree of automation: can integrate automatic loading and unloading, visual positioning system, robot collaboration, etc.
- Good welding stability: the gantry structure has strong rigidity and low vibration, suitable for high-quality welding.
- Strong customizability and scalability: platform size, laser power, number of axes, etc. can be customized as needed.
Specification:
| Laser Type |
Continuous |
| Laser Wavelength |
1070nm±5nm |
| Indicator Lights |
Red light |
| Laser Power |
1000W/1500W/2000W/3000W/6000W(can be chosen) |
| Power adjustment range |
5%-100% |
| gas protective method |
Concentric |
| optical fiber core radius |
50μm |
| alignment |
50mm |
| Laser Modes |
Multi |
| minimum facula |
0.2mm |
Fast Questions and Answers.
Q: What can you buy from us?
A: Laser Cleaning Machine, Laser Welding Machine, Laser engraving machine, Laser Cutting Machine, Laser machine accessories like laser head, laser lens etc.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Why choose us?
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
