Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-WF001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Power: |
1000W/1500W/2000W |
Laser Modes: |
Continuous |
Fiber Length: |
Standard 10m/Maximum 15m |
Welding Speed: |
0-100m/h |
Welding Gap: |
<0.5mm |
Cooling Mode: |
Air Cooling/water Cooling |
Power: |
1000W/1500W/2000W |
Laser Modes: |
Continuous |
Fiber Length: |
Standard 10m/Maximum 15m |
Welding Speed: |
0-100m/h |
Welding Gap: |
<0.5mm |
Cooling Mode: |
Air Cooling/water Cooling |

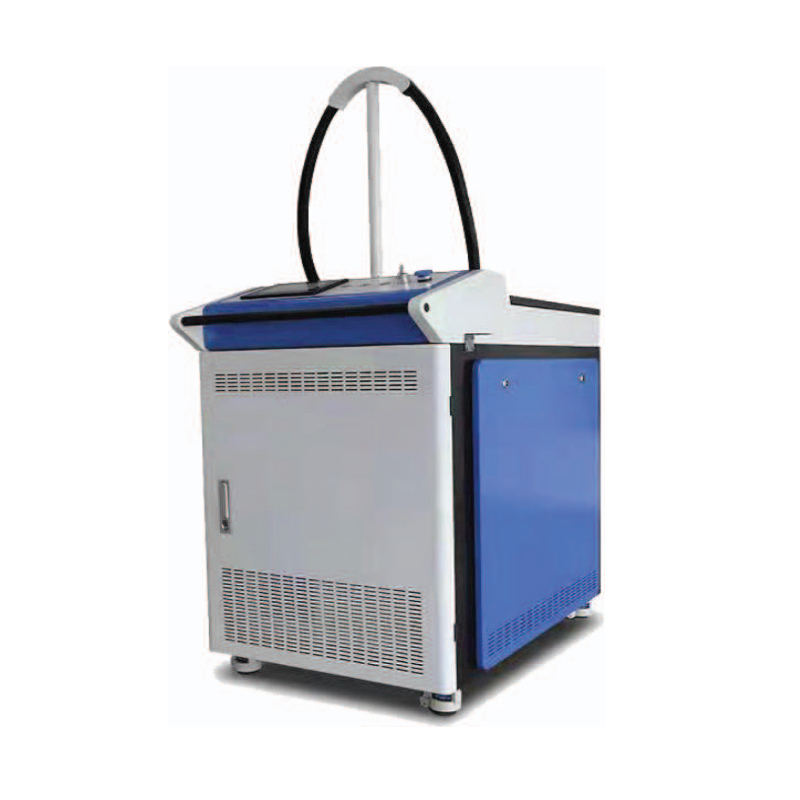

Handheld Continuous Laser Welding Machine Stainless Steel Metal Welding High Quality Fiber Laser Welder
Laser handheld welding machine is a kind of equipment that uses high energy density laser beam as heat source and realizes welding of metal materials through handheld welding gun. It is a convenient application form of laser welding technology, with the characteristics of high efficiency, precision and easy operation, and is widely used in sheet metal processing, hardware, kitchen utensils, auto parts, stainless steel products and other fields.
Common welding modes:
Spot welding: suitable for positioning or local welding.
Line welding (continuous welding): suitable for long weld structures.
Oscillating welding: the laser spot oscillates along the "S", "∞" and other trajectories to improve the weld width and forming quality.
Multi-layer and multi-pass welding: used for thick plate materials, layered welding to ensure the depth of penetration.
Specification:
| Laser Type | Continuous |
| Laser Indicator | Red light+HD CCD |
| Laser Modes | Continuous/Pulse |
| Laser Power | 1000W/1500W/2000W |
| Power adjustment range | 10%-100% |
| gas protective method | Concentric |
| alignment | 50mm |
| Welding thickness | 0.5-3mm |
| Welding gap | <0.5mm |
| Welding speed | 0-100m/h |
| Fiber length | standard 10m/Maximum 15m |
Fast Questions and Answers.
Q: How can I get the best machine of laser marking machine for me?
A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not.Then we can give you the best model.
Q: May I add my own logo?
A: Yes, we could help do OEM and can print your logo on machine, please share your logo with us then we can check.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
