Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-WC001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Power: |
Continuous: 1000-3000W; Pulse: 100/1000-300/3000W |
Laser Modes: |
Continuous/Pulse |
Welding Material: |
Stainless Steel, Carbon Steel, Aluminum, Etc. |
Fiber Length: |
0.1-5m |
Laser Wavelength: |
1070nm±5nm |
Cooling Mode: |
Air Cooling Or Water Cooling |
Power: |
Continuous: 1000-3000W; Pulse: 100/1000-300/3000W |
Laser Modes: |
Continuous/Pulse |
Welding Material: |
Stainless Steel, Carbon Steel, Aluminum, Etc. |
Fiber Length: |
0.1-5m |
Laser Wavelength: |
1070nm±5nm |
Cooling Mode: |
Air Cooling Or Water Cooling |

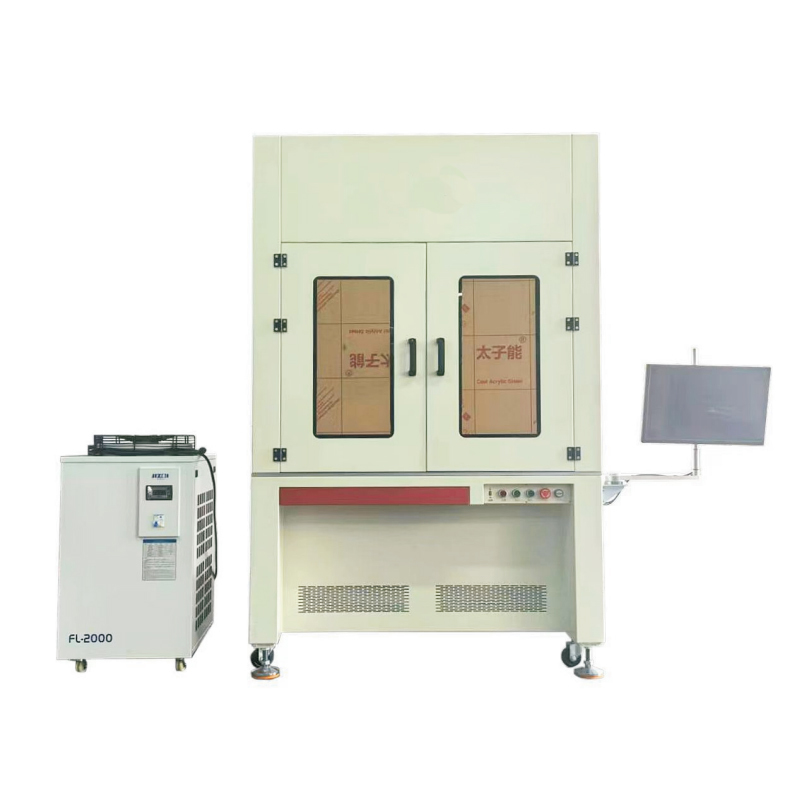

Fully Enclosed Double-end Laser Welder Laser Welding Machine Fiber Automatic Laser Welder
The fully enclosed double-head laser welding machine is a high-efficiency and high-safety laser welding equipment. It uses dual laser welding heads to work simultaneously and is equipped with a fully enclosed protective cover. It is widely used in batch and multi-station welding production, especially in industries with high requirements for efficiency, precision and safety, such as new energy batteries, electronic communications, medical equipment, metal structural parts, etc.
Feature:
The laser outputs laser light through optical fiber, which is connected to two laser welding heads respectively;
The laser is focused on the surface of the workpiece, heated and melted to form a welding pool;
The welding head moves under the programmed trajectory to achieve precise welds;
The two welding heads can weld two workpieces synchronously, or perform mirror welding on a large workpiece to improve efficiency;
The fully enclosed cover protects the operator from laser damage, and is equipped with a dust removal system and safety monitoring inside.
Specification:
| Laser Type | Fiber(Continuous/Pulse) |
| Laser Wavelength | 1070nm±5nm |
| Laser Indicator | Red light+HD CCD |
| Laser Power | Continuous: 1000-3000W Pulse: 100/1000-300/3000W |
| Power adjustment range | 10%-100% |
| gas protective method | Concentric/ side-blown/ fixed position |
| optical fiber core radius | 14/20/50/100μm |
| Laser Modes | Continuous/Pulse |
| Fiber length | 0.1-5m |
| Cooling Mode | air cooling/water cooling |
Fast Questions and Answers.
Q: How can I get the best machine of laser marking machine for me?
A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not.Then we can give you the best model.
Q: May I add my own logo?
A: Yes, we could help do OEM and can print your logo on machine, please share your logo with us then we can check.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Fully Enclosed Double-end Laser Welder
video
