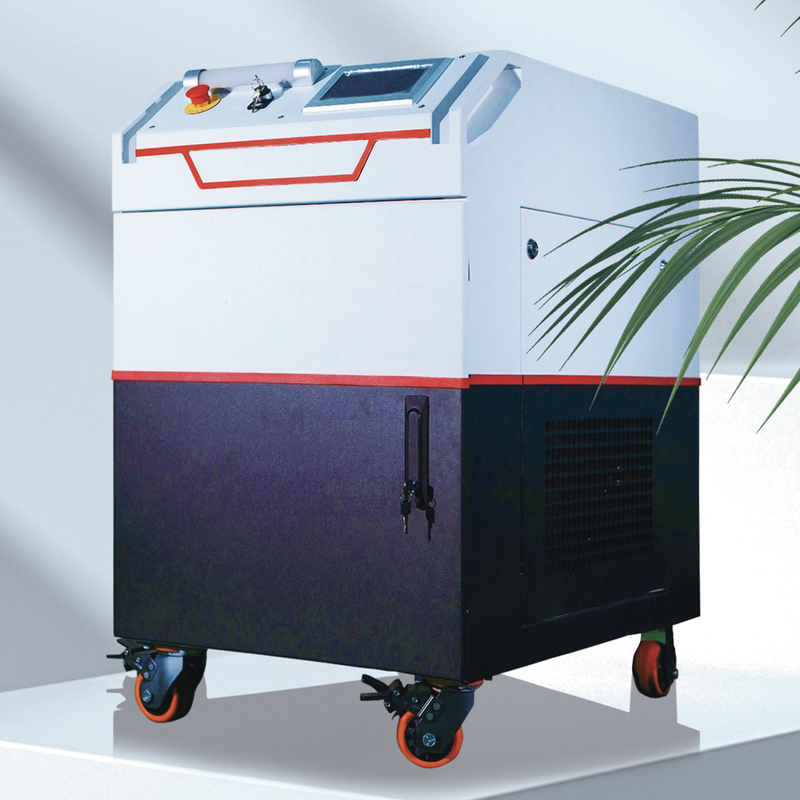

Portable 200~300W Fiber Pulse Laser Cleaning Machine for Industrial Rust and Paint Removal Air Cooling Simple System For Tooling Cleaning Industry Grade Laser Cleaner
Why choose our machine:
1. Automatic system available, this machine can be loaded with a robot arm to do automatic laser cleaning process.
2. High effeiciency and steady laser machine, our machine can be equipped with water cooling system that can provide with high power cleaning performance, it can meet to production needs for most factory.
3.Low cost to use, our laser cleaning machine has a long life-time up to 50.000~80.000 hours, low cost and with high efficiency.
4.Environment friendly, this machine is equipped with dust-vacuum air knife, and no need of cleaning supplies, eco-friendly cleaning process.
5.High safety level, triple protection measures with international standards, to make sure the safety when using the machine.
Flexible Trolley Design High Efficient Laser Clean Machine Touchscreen System, Easy and Steady Laser Cleaning Machine Low Cost to Use for Industrial Tooling Clean
Specification:
| Equipment Model |
KLC-T200 |
| Working Mode |
Pulse |
| Laser Power |
200~300W |
| Laser Brand |
Max/Raycus/JPT |
| Central Wavelength |
1064±5 nm |
| Maximum Single Pulse Energy |
1.6 mJ |
| Repetition Frequency |
20~50 kHz |
| Optical Pulse Width |
120~160 ns |
| Beam Quality |
M² |
| Output inStability |
<5% |
| Light-on Delay |
<150 us |
| Light-off Delay |
<100 us |
| Fiber length |
5 m |
| Cooling Mode |
air cooling |
| Equipment Overall Size |
640*1050*1080 mm |
| Equipment Total Weight |
130 kg |
| Cleaning Head Weight |
1350 g |
| Scanning Width |
0~390 mm |
| Scanning Speed |
10000 mm/s |
Welcome your inquiry!
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
Questions and Fast Answers.
Q: What can you buy from us?
A: Laser Cleaning Machine, Laser Welding Machine, Laser engraving machine, Laser Cutting Machine, Laser machine accessories like laser head, laser lens etc.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Q: Can we sell your machine in our country as local agent?
A: Yes, we welcome you to become our local agent, and we will support our agent with training, installation, after-sales service to make sure the business well.
