Product Details
Place of Origin: China
Brand Name: Lorq / Your logo
Model Number: KLC-T500
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Price: USD18000~21980
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 working days
Payment Terms: ,L/C,T/T,Western Union,MoneyGram
Laser Mode: |
Pulse Laser |
Laser Power: |
500w/1000w |
Cooling Way: |
Water Cooling |
Fiber Length: |
15 M |
Scanning Width: |
0~350 Mm |
Scanning Speed: |
7000~8000 Mm/s |
Equipment Total Weight: |
220 Kg |
Laser Mode: |
Pulse Laser |
Laser Power: |
500w/1000w |
Cooling Way: |
Water Cooling |
Fiber Length: |
15 M |
Scanning Width: |
0~350 Mm |
Scanning Speed: |
7000~8000 Mm/s |
Equipment Total Weight: |
220 Kg |

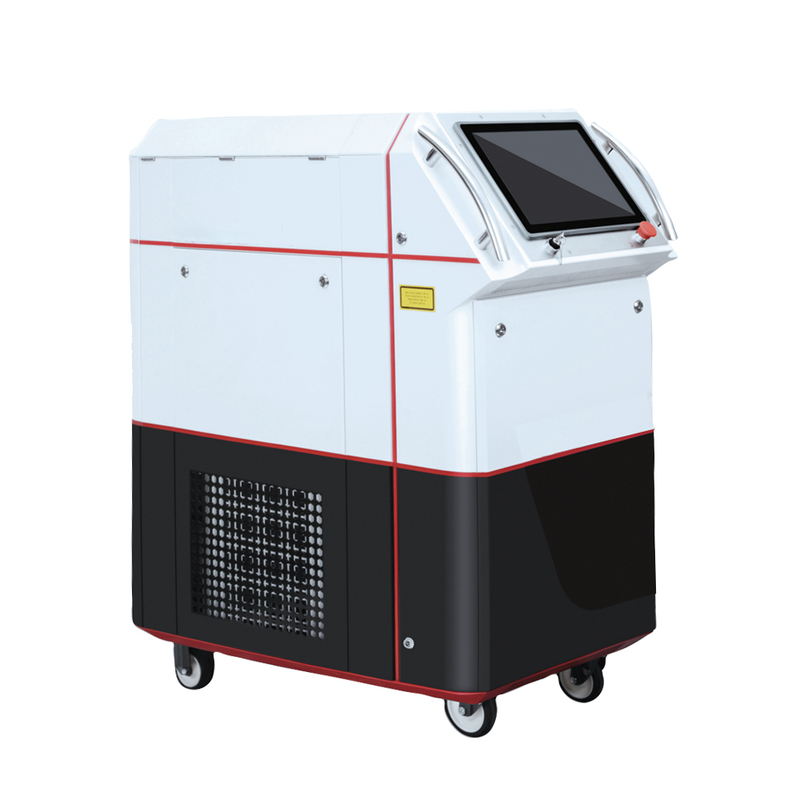

500W Cart-Mounted Laser Cleaning Machine Portable Handheld Rust Removal Machine
Laser Cleaner for Metal Rust and Paint Removal Cart-Mounted Laser Cleaning Machine for Easy Mobility Pulsed
Advantages of our machine:
1.This machine can be loaded with a robot arm to do automatic laser cleaning process.
2.The machine is equipped with water cooling system that can provide with high power cleaning performance, it can meet to production needs for most factory.
3.Our laser cleaning machine has a long life-time up to 50.000~80.000 hours, costive and with high efficiency.
4.This machine is equipped with dust-vacuum air knife, and no need of cleaning supplies, eco-friendly cleaning process.
5.Triple protection measures with international standards, to make sure the safety when using the machine.
Specification:
| Equipment Model | KLC-T500 |
| Working Mode | Pulse |
| Laser Power | 500W/1000W |
| Laser Brand | Max/Raycus |
| Central Wavelength | 1064±5 nm |
| Maximum Single Pulse Energy | 50 mJ |
| Repetition Frequency | 10~2000 kHz |
| Optical Pulse Width | 17~100 ns |
| Beam Quality | M² |
| Output inStability | <5% |
| Light-on Delay | <300 us |
| Light-off Delay | <300 us |
| Fiber length | 15 m |
| Cooling Mode | Water cooling |
| Equipment Overall Size | 1204*1217*630 mm |
| Equipment Total Weight | 220 kg |
| Cleaning Head Weight | 1350 g |
| Scanning Width | 0~350 mm |
| Scanning Speed | 7000~8000 mm/s |
Welcome your inquiry!
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
