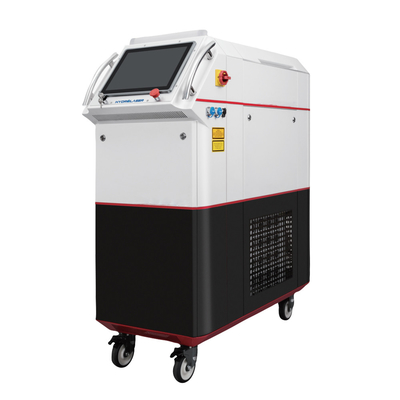

500W 1000W Cart Type Laser Cleaning Machine Fiber Laser Cleaner Metal Rust and Paint Removal
High Power Laser Cleaning Machine, Fast and High Efficiency with Metal/Wood Surface Rust/Paint Removal, Stable and Easy Operation Laser Machine.
Advantages of our machine:
1.This machine can be loaded with a robot arm to do automatic laser cleaning process.
2.The machine is equipped with water cooling system that can provide with high power cleaning performance, it can meet to production needs for most factory.
3.Our laser cleaning machine has a long life-time up to 50.000~80.000 hours, costive and with high efficiency.
4.This machine is equipped with dust-vacuum air knife, and no need of cleaning supplies, eco-friendly cleaning process.
5.Triple protection measures with international standards, to make sure the safety when using the machine.
Specification:
| Equipment Model |
KLC-T500 |
| Working Mode |
Pulse |
| Laser Power |
500W/1000W |
| Laser Brand |
Max/Raycus |
| Central Wavelength |
1064±5 nm |
| Maximum Single Pulse Energy |
50 mJ |
| Repetition Frequency |
10~2000 kHz |
| Optical Pulse Width |
17~100 ns |
| Beam Quality |
M² |
| Output inStability |
<5% |
| Light-on Delay |
<300 us |
| Light-off Delay |
<300 us |
| Fiber length |
15 m |
| Cooling Mode |
Water cooling |
| Equipment Overall Size |
1204*1217*630 mm |
| Equipment Total Weight |
220 kg |
| Cleaning Head Weight |
1350 g |
| Scanning Width |
0~350 mm |
| Scanning Speed |
7000~8000 mm/s |
Welcome your inquiry!
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
Questions and Fast Answers.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
