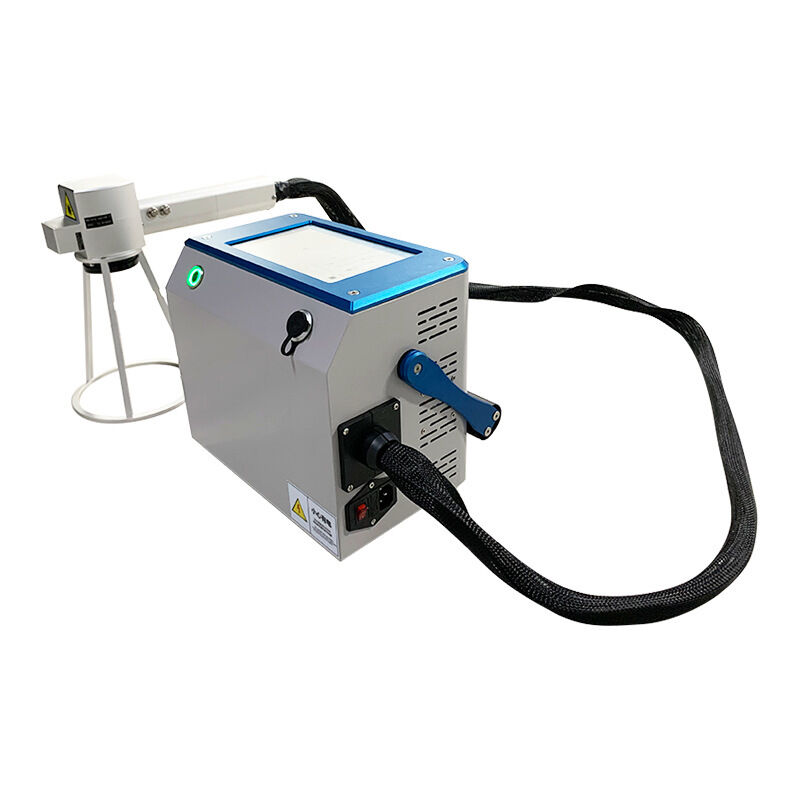

Portable Small Laser Marking Machine Handheld Fiber Laser Engraving Machine

Name: Portable Small Laser Marking Machine Handheld Fiber Laser Engraving Machine
Brand: Shenzhen Lansedadi Technology Co.Ltd
SKU: KLM-P001
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: Lorq / Your logo

Certification: CE

Model Number: KLM-P001

Payment & Shipping Terms

Minimum Order Quantity: 1 pc

Packaging Details: Wood case+foam Packing

Delivery Time: 10~15 days

Payment Terms: L/C,T/T,Western Union,MoneyGram

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                portable handheld laser engraving machine, small fiber laser marking machine, handheld fiber laser engraver


Cooling Mode:	Air Cooling	Condition:	New
Application:	Laser Marking	Warranty:	1 Year
Marking Speed:	0-7000mm/s	Laser Power:	20watt 30watt
Laser Wavelength:	1064nm	Laser Source:	Raycus,JPT,MAX, IPG
Applicable Material:	Metal Plastic

Cooling Mode:	Air Cooling
Condition:	New
Application:	Laser Marking
Warranty:	1 Year
Marking Speed:	0-7000mm/s
Laser Power:	20watt 30watt
Laser Wavelength:	1064nm
Laser Source:	Raycus,JPT,MAX, IPG
Applicable Material:	Metal Plastic

Product Description

Portable Small Laser Marking Machine Handheld Fiber Laser Engraving Machine

20W Mini Portable Handheld Engraving Fiber Laser Marking Machine for Metal Logo Number Laser

Fiber laser marking machines utilize fiber lasers as light sources. These systems convert electrical energy into laser beams through a laser generator, then transmit them to the marking system via optical fibers. High-precision scanning mirrors and focusing mirrors concentrate the laser beams onto the workpiece surface, generating localized high temperatures that cause ablation, gasification, or chemical reactions on the material surface, thereby forming permanent marks.

Key Advantages

Low Maintenance Cost: Minimal maintenance requirements with extended service life
Material Integrity Preservation: Laser marking maintains original material properties including hardness and corrosion resistance
High Temperature Compatibility: Suitable for marking operations in elevated temperature environments

Technical Specifications

Laser Type	Fiber
Output Power	20W/30W
Laser Wavelength	1064±3 nm
Carving Line Speed	≤7000mm/s
Repetitive Accuracy	±0.01mm
Marking Depth	0.02mm-0.5mm
Cooling Mode	Air Cooling
Equipment Dimensions	650mm × 935mm × 1450mm
Total Weight	10.8kg
Marking Range	50×50mm / 100×100mm (customizable)

Applications

Electronic products hardware and metals, motorcycle accessories, wires and cables, pipes, food and beverage packaging, daily chemical products, and various non-metallic materials including PVC, PE, PC, PA, and more.
