Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-MC001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Marking |
Warranty: |
1 Year |
Marking Speed: |
0-20000mm/s |
Laser Power: |
10W/20W/30W/50W/100W |
Laser Wavelength: |
10.6μm |
Laser Source: |
Raycus,JPT,MAX, IPG |
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Marking |
Warranty: |
1 Year |
Marking Speed: |
0-20000mm/s |
Laser Power: |
10W/20W/30W/50W/100W |
Laser Wavelength: |
10.6μm |
Laser Source: |
Raycus,JPT,MAX, IPG |

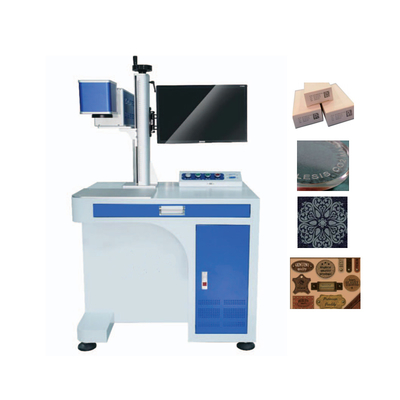

CO2 Laser Marking Machine For Wood Paper Leather Non-metal Laser Engraving Machine
The desktop CO₂ laser marking machine uses carbon dioxide gas as the laser working medium, uses high voltage to excite CO₂ gas to generate a continuous laser beam, and uses a high-speed scanning galvanometer system to engrave patterns, text, barcodes and other information onto the surface of the material.
It adopts a desktop structure and is compact in size, suitable for use in limited spaces such as desks, workbenches or laboratories.
Feature:
Wide range of compatible materials: Can mark most non-metallic materials
Clear marking: Clear graphics and text, good engraving/cutting effect
No consumables, environmentally friendly: No ink required, no pollution, low operating cost
Simple operation: Software control, supports multiple graphics import (AI, DXF, BMP, etc.)
Long laser life: The service life of the RF tube is generally more than 20,000 hours
Specification:
| Laser Type | CO2 |
| Output Power | 10W/20W/30W/50W/100W |
| Laser Wavelength | 10.6μm |
| Laser Frequency | 0KHz-1000KHz |
| Marking Range | 110*110mm/140*140mm/175*175mm(can be chosen) |
| Repetitive accuravy | 0.05mm |
| Minimum character | 0.2mm |
| Carving line speed | <20000mm/s |
| Repetitive accuravy | ±0.001mm |
| Cooling Mode | Air cooling(can be chosen) |
| Application | Widely used in craft gifts, organic glass, clothing leather, wood paper, food packaging, electronic components, PCB, flexible circuit board, ceramic substrate, semiconductor, crystal glass, plastic connector, silicone rubber button, SMD components and other non-metallic materials. |
Fast Questions and Answers.
Q: What can you buy from us?
A: Laser Cleaning Machine, Laser Welding Machine, Laser engraving machine, Laser Cutting Machine, Laser machine accessories like laser head, laser lens etc.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Why choose us?
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
