Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: KLM-C001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Cooling Mode: |
Air Cooling/ Water Cooling |
Warranty: |
1 Year |
Marking Speed: |
8000-20000mm/s |
Keywords: |
Laser Leather Engraving Machine |
Laser Type: |
Co2 |
Cooling Mode: |
Air Cooling/ Water Cooling |
Warranty: |
1 Year |
Marking Speed: |
8000-20000mm/s |
Keywords: |
Laser Leather Engraving Machine |
Laser Type: |
Co2 |

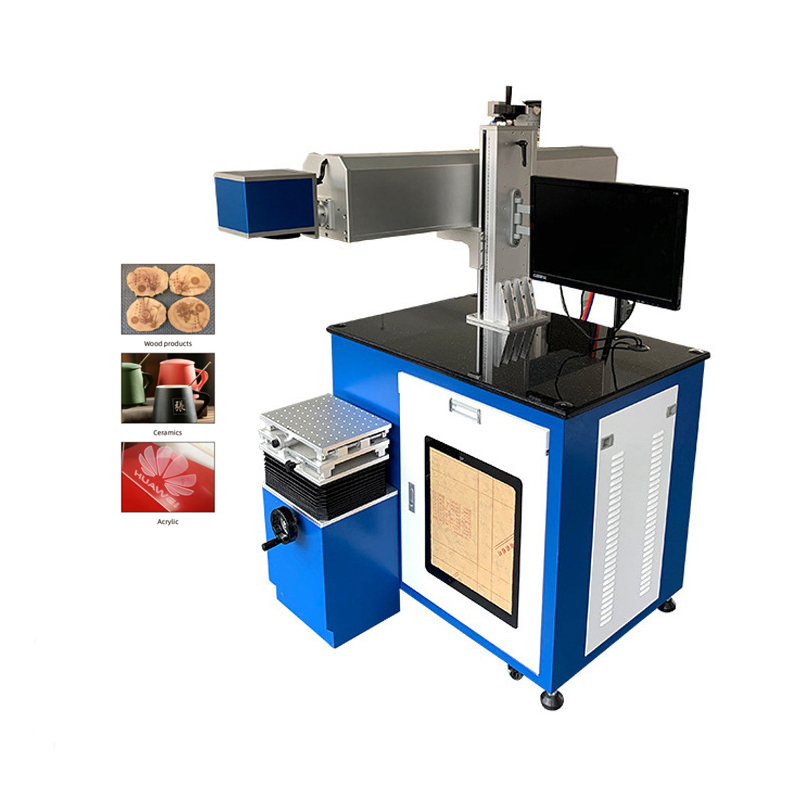

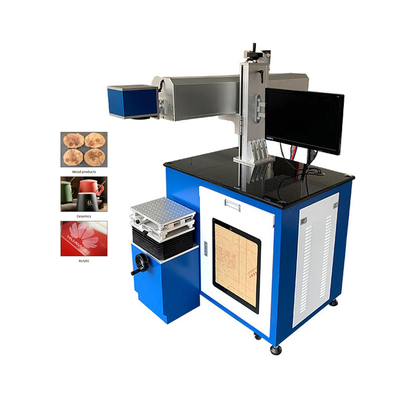

Co2 Laser Engraving Machine Leather Glass Ceramics Paper Stone Laser marker
Feature:
CO₂ laser engraving machines excite carbon dioxide gas (mixed with assist gases such as nitrogen and helium) to generate a continuous wave or pulsed laser. This laser is then focused and directed onto the surface of a material. The high-energy laser beam instantly melts, vaporizes, or carbonizes the material, achieving engraving or cutting.
Basic process:
An electric current excites the CO₂ gas, generating infrared laser light (10.6μm wavelength);
This light is focused onto the material surface via a reflector and focusing lens;
A control system (software + control board) controls the movement of the laser head to engrave the desired pattern;
The laser energy vaporizes or changes the color of the surface material, creating the desired pattern or cutting effect.
Specification:
| Output Power | 30W/60W/120W/150W |
| Laser Wavelength | 9.3/10.2/10.6µm |
| Marking Range | 175*175mm/300*300mm |
| Carving line speed | 8000-20000mm/s |
| Repetitive accuravy | ±0.01mm |
| Minimum line width | 0.2mm |
| Minimum character | 0.1mm |
| cooling mode | Air-cooling/water cooling |
| Marking materials | PET, wood, acrylic, glass, leather, fabric, cardboard boxes, rubber, etc |
