Product Details:
Payment & Shipping Terms:
|
Cooling Mode: | Air Cooling | Condition: | New |
---|---|---|---|
Application: | Laser Marking | Warranty: | 1 Year |
Marking Speed: | 0-7000mm/s | Laser Power: | 20watt 30watt |
Laser Wavelength: | 1064nm | Laser Source: | Raycus,JPT,MAX, IPG |
Advantage: | Adapt To Complex Surfaces | ||
Highlight: | Fiber co2 laser engraver,30watt co2 laser engraver,100W fiber optic laser engraver |

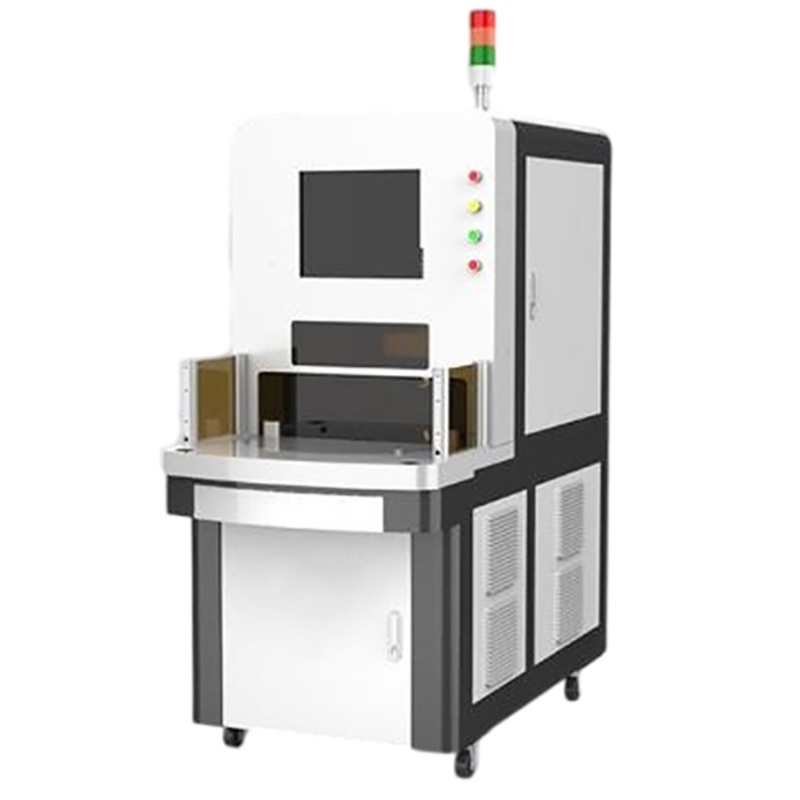

3D Laser Marking Machine Laser Engraver
What's The Advantages Of Our Machine?
Adapt to complex surfaces: It can process complex workpiece surfaces such as curved surfaces, irregular surfaces, deep holes, chamfers, etc., and can also achieve high-precision marking in areas that traditional laser marking machines cannot handle.
High precision and high quality: 3D laser marking machines can mark small three-dimensional shapes with high precision, with more delicate effects and uniform marking depth.
Non-contact processing: Unlike traditional engraving methods, 3D laser marking machines use laser non-contact marking, so there is no physical contact and surface damage is avoided.
Versatility: In addition to general marking functions, 3D laser marking machines can also perform a variety of operations such as micro-engraving, texture processing, deep engraving, etc., with a wider range of applications.
High efficiency: The high-speed scanning and automated adjustment of 3D laser marking machines enable them to maintain high work efficiency when processing complex workpieces.
Specification:
Laser Type | Fiber(UV or CO2) |
Output Power | 20W/30W/50W/100W |
Laser Wavelength | 1064±3 nm |
Minimum character | <=0.4mm |
Minimum line width | <=0.1mm |
Carving line speed | 8000-20000mm/s |
Cooling Mode | water/air cooling |
Equipment Overall Size | 650mm*935mm*1450mm |
Equipment Total Weight | 80-150kg |
Marking Range | 110*110mm(can be customized) |
Fast Questions and Answers.
Q: How can I get the best machine of laser marking machine for me?
A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not.Then we can give you the best model.
Q: May I add my own logo?
A: Yes, we could help do OEM and can print your logo on machine, please share your logo with us then we can check.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
3D Laser Marking Machine Laser Engraver
