Product Details
Place of Origin: Guangdong, China
Brand Name: Lorq / Your logo
Certification: CE
Model Number: YL-MG001
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Wood case+foam Packing
Delivery Time: 10~15 days
Payment Terms: L/C,T/T,Western Union,MoneyGram
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Marking |
Warranty: |
1 Year |
Marking Speed: |
<20000mm/s |
Laser Power: |
3W/5W/10W/20W/30W/etc(can Be Chosen) |
Laser Source: |
Raycus,JPT,MAX, IPG |
Cooling Mode: |
Air Cooling/Water Cooling |
Condition: |
New |
Application: |
Laser Marking |
Warranty: |
1 Year |
Marking Speed: |
<20000mm/s |
Laser Power: |
3W/5W/10W/20W/30W/etc(can Be Chosen) |
Laser Source: |
Raycus,JPT,MAX, IPG |

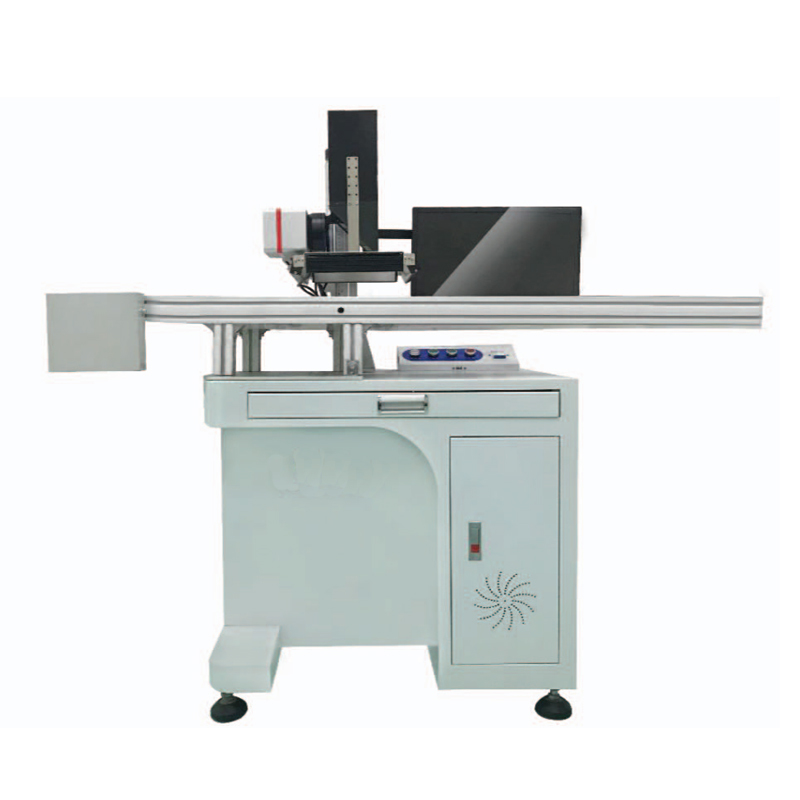

High Precision Camera Vision Positioning Laser Marking Machine CCD Visual Automatic Detection
The laser vision marking machine is based on an ordinary laser marking machine, with the addition of an industrial vision system (camera + image processing software). It can visually identify the position, angle, and direction of the workpiece, automatically adjust the marking path, and achieve accurate, efficient, and flexible marking. It is suitable for complex, changeable, and small-batch precision manufacturing scenarios.
Feature:
The product is placed in the marking area manually or automatically (no precise positioning is required).
The visual system takes a photo to identify the feature points, mark points or contours on the product.
The software algorithm compares the set model and automatically calibrates the position, angle, scaling offset and other errors of the product.
The laser control system receives the visual correction results and dynamically adjusts the marking path.
The marking operation is completed accurately and the marking position is accurate.
Specification:
| Laser Type | Fiber /CO2 /UV(can be chosen) |
| Output Power | 3W/5W/10W/20W/30W/...(can be chosen) |
| Marking Range | 110*110mm(can be chosen) |
| Minimum line width | <0.015mm |
| Minimum character | 0.06mm |
| Carving line speed | <20000mm/s |
| Repetitive accuravy | ±0.01mm |
| Cooling Mode | water cooling/ air cooling(can be chosen) |
Fast Questions and Answers.
Q: How can I get the best machine of laser marking machine for me?
A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not.Then we can give you the best model.
Q: May I add my own logo?
A: Yes, we could help do OEM and can print your logo on machine, please share your logo with us then we can check.
Q: How long is your delivery time?
A: Normally for 1~3 sets, it is 7-12 days, if 5 pcs above, it will be 12~15 days, depends on total qty you purchased. We will send you test video and photos before shipping.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Laser Vision Marking Machine
