Product Details:
Payment & Shipping Terms:
|
Cooling Mode: | Air Cooling/Water Cooling | Condition: | New |
---|---|---|---|
Application: | Laser Marking | Warranty: | 1 Year |
Marking Speed: | 8000-20000mm/s | Laser Power: | 3W/5W/10W |
Laser Wavelength: | 355nm | Laser Source: | Raycus,JPT,MAX, IPG |
Highlight: | desktop uv laser marking machine,desktop laser uv marking machine,3w laser uv marking machine |

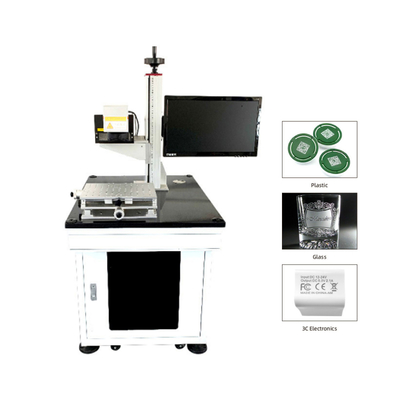

UV Laser Marking Machine Uv Laser Engraver for Glass Paper Box Plastic logo
Feature:
High-precision and detailed marking effect:
The UV laser marking machine can mark in very small areas, providing extremely high marking accuracy, which is very suitable for marking tasks with high detail requirements.
Suitable for heat-sensitive materials:
Due to the extremely fine effect of ultraviolet laser, it can effectively avoid damage to heat-sensitive materials. It is particularly suitable for marking some materials that are not resistant to high temperatures (such as plastics, coatings, films, etc.).
Depth controllable:
The UV laser can control the depth of the marking effect by adjusting the laser parameters to adapt to the processing of different materials and needs.
Non-contact processing:
Since the laser processes the workpiece in a non-contact manner, there is no mechanical wear, which greatly reduces the damage during the processing.
Environmentally friendly:
The UV laser marking machine does not produce chemical pollution, exhaust gas or waste during operation, which meets environmental protection requirements.
High work efficiency:
Due to the high laser emission frequency, the UV laser marking machine has a high marking speed, which can improve production efficiency in industrial production.
Specification:
Output Power | 3W/5W/10W |
Laser Wavelength | 355nm |
Laser Type | UV |
Positioning method | red light Positioning |
Marking Range | 175*175mm/300*300mm |
Frequency adjustable range | 30KHz-150KHz |
Pulse width | 2-500ns |
Carving line speed | 8000-20000mm/s |
Repetitive accuravy | ±0.003mm |
Minimum line width | 0.01mm |
cooling mode | Air-cooling/water cooling |
Fast Questions and Answers.
Q: What can you buy from us?
A: Laser Cleaning Machine, Laser Welding Machine, Laser engraving machine, Laser Cutting Machine, Laser machine accessories like laser head, laser lens etc.
Q: I don’t know which one is suitable for me ?
A: You can let us know what materials you are working with, and what you want to do with them, we will offer advise or recommend suitable machine to you.
Q: How to operate the machine?
A: We will send you English manual and guide video, usually the machines are very easy to operate. If you still need our further help, please contact us, we have technicians to help.
Q: How long is your warranty?
A: Our warrant for whole machine is 1 year without man-made quality problems, while for laser source our warranty is 2 years. If you have any problems beyond warranty we will offer online technical helps and low cost spare parts replacement.
Why choose us?
1. 10+ years experiences in laser machine field. Our co-founder is growing together with Chinese laser machine industry and we have rich resources for all kinds of laser machines. Now we work with our domestic brand factory in Shenzhen, both quality and advanced technology can be guaranteed for you.
2. Our technicians dedicate to make our final machine to be stable and easy-operated, so most people can use them easily as long as you follow our manual instructions. Besides, we also support with on-line/video guide. For special projects we provide oversea spot technique supporting.
